Description
DESIGN AND MANUFACTURING
Recommended to control access to residential areas and also for commercial and industrial applications.
OIL-HYDRAULIC
Blocco idraulico per lo stazionamento in posizione alta (di serie) e manovra di emergenza per l’abbassamento con chiave di sblocco in dotazione.
Elettrovalvola (opzionale) per la discesa automatica in caso di mancanza di alimentazione elettrica.
Collaudato per un utilizzo intensivo a basse ed alte temperature.
EASY ACCESS TO THE OIL-HYDRAULIC COMPONENTS
The handy housing position of the motor pump and oil-hydraulic actuator inside the bollard allows for easy maintenance and reduces service and installation times. In this way the components are also more protected, rust and other factors of deterioration are prevented.
SIMPLE AND QUICK TO INSTALL
Reduced weight of the pit so that no particular excavation or brick works are needed. Cataphoresis treated and polyester powder coated scratch-proof steel cylinder, head with rubber edge. Hall effect limit switch sensors, LED lights (optional).
VERSATILE
A vast range of command and safety accessories allow for reliable and precise control of the installations. The electronic control unit can be set so that it can manage several bollards at a time.

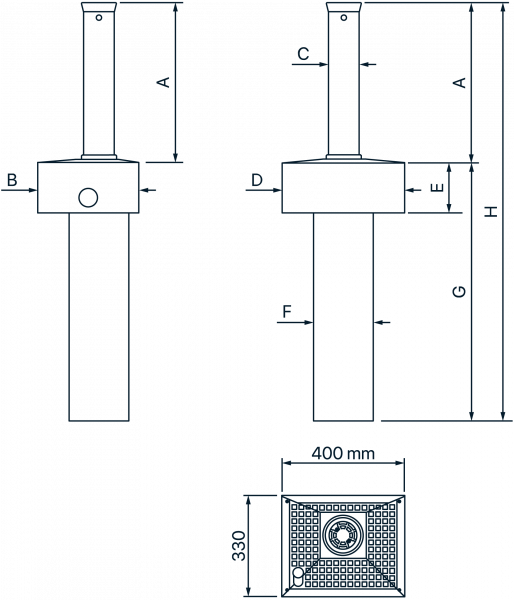

Data Sheet
| Cylinder diameter (mm) |
100 |
| Cylinder thickness (mm) |
5 |
| Cylinder height from ground (mm) |
500/600/800 |
| Cylinder material |
S235JRH steel |
| Cylinder treatment and finishing |
cataphoresis and polyester powder coating RAL 7016 |
| Pit |
hot dip galvanization |
| Working temperature (°C) |
-20 ÷ +80 -40 [A] |
| Oil type |
708L |
| Power supply (Vac – Hz) |
230 – 50 |
| Absorbed power (W) |
330 |
| Absorbed current (A) |
1,8 |
| Power yield (kW / HP) |
0,25 / 0,33 |
| Grade of protection IP of the hydraulic motor-pump |
67 |
| Frequency of use (cycles/day) |
heavy duty / 2.000 |

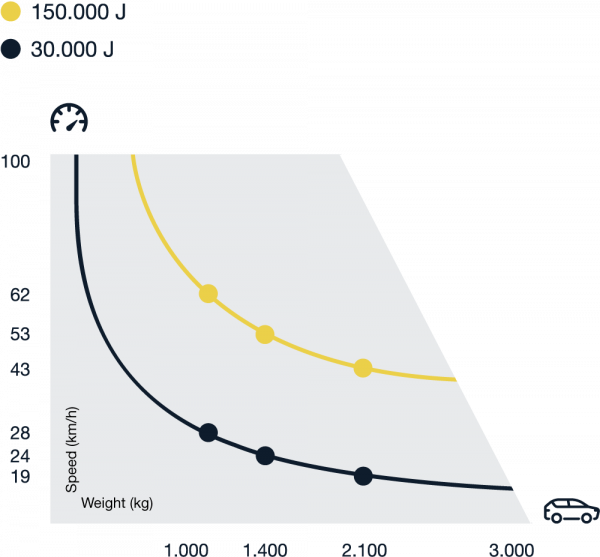

| Impact resistance (J) |
30.000 |
| Breakout resistance (J) |
150.000 |
| Maximum static load (kg) |
20.000 |
[A]: Possibility to install the automatic bollard in very cold areas, -40 °C and even less, without freezing problems. Refer to code No. 2590L or, as an alternative for existing installations, code No. 2746L.
Specifications

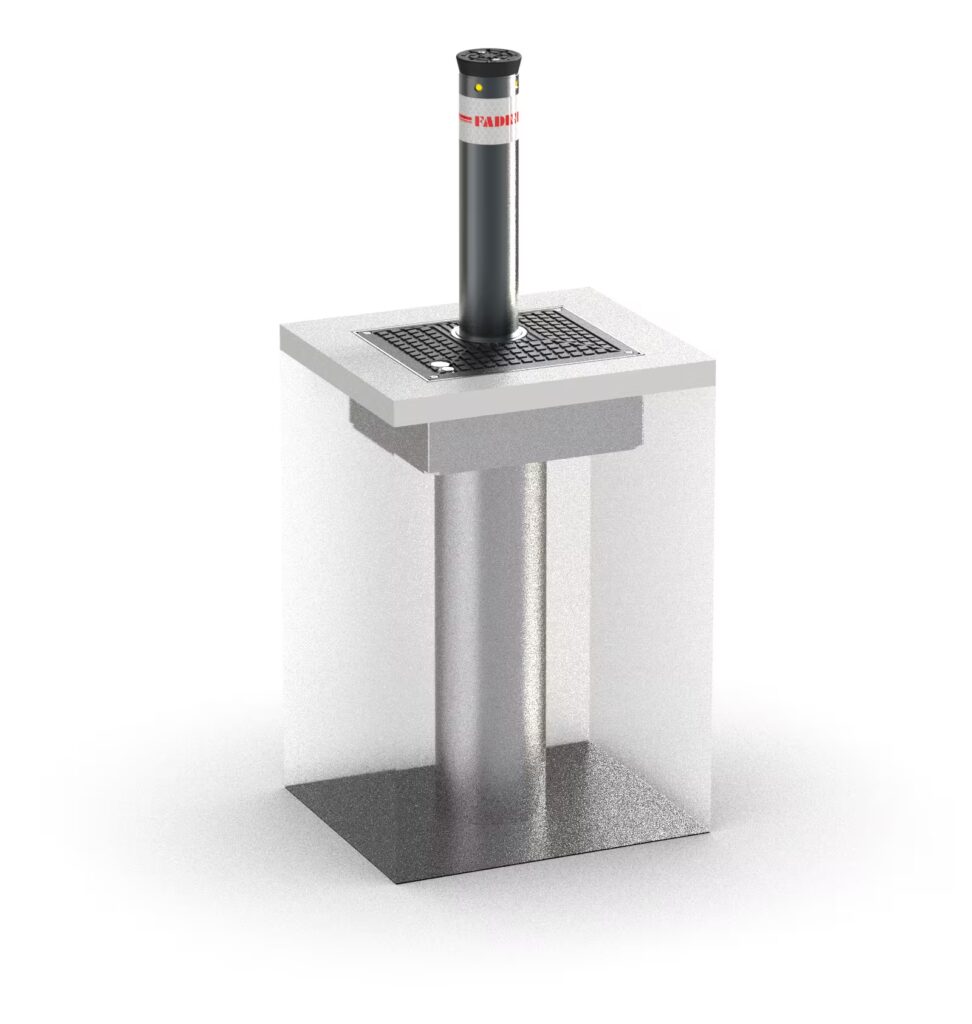

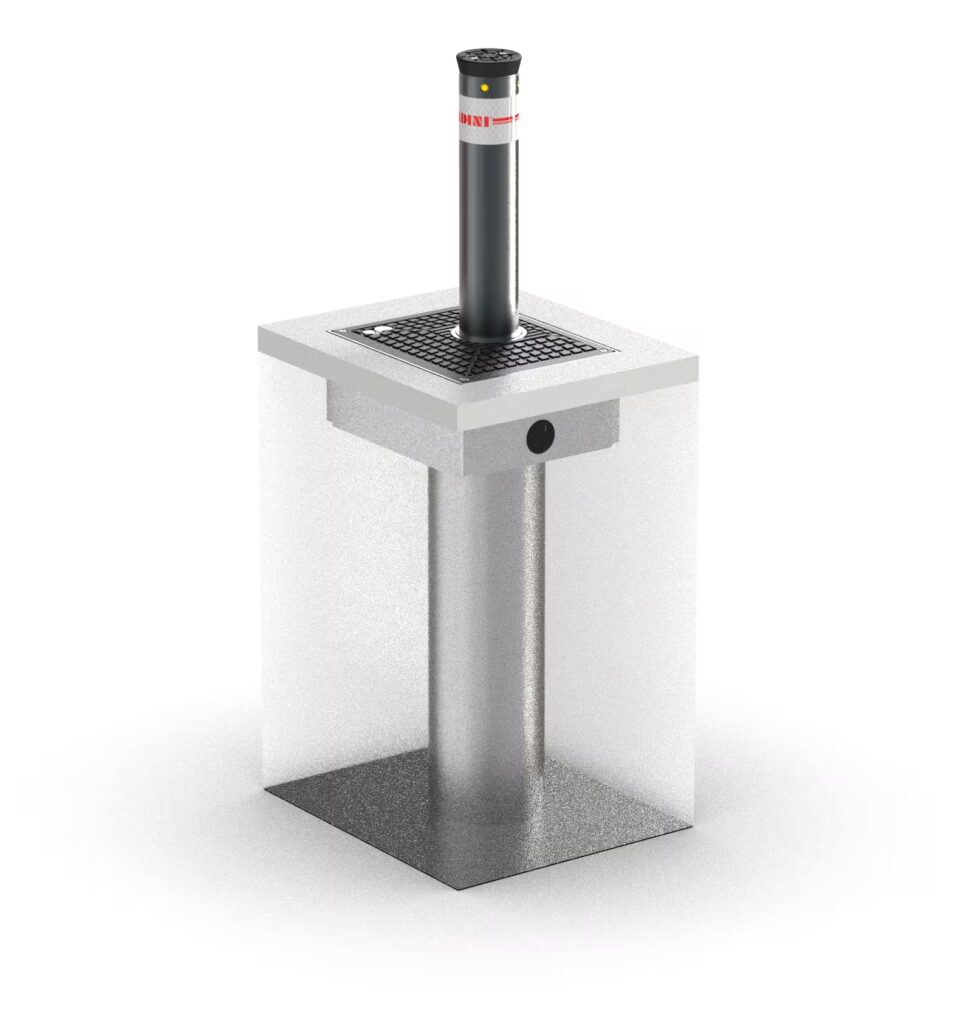

Fully retractable, heavy duty, automatic bollard consisting of an oil-hydraulic motor-pump unit incorporated inside the main structure and an oil-hydraulic actuator inside the moving cylinder. Suitable to meet residential, commercial and industrial requirements and urban applications. IP 67. Height from ground level can be 500, 600 or 800 mm. Scratch-proof S235JRH steel moving cylinder, thickness 5 mm and ø 100 mm, cataphoresis treated and polyester powder coated. Cylinder head made of aluminium with rubber edge, cataphoresis treated aluminium cover plate. Head and cover plate are slip-proof and tread resistant. Moving cylinder fitted with an approved, retro-reflecting, high intensity, micro-prismatic, high intensity adhesive film (h 80 mm), available with No. 4 amber-colour signalling LED lights flashing and radially fitted, 10 m electric cable. Hot-dip galvanized steel pit. Cover plate allowing access to the hydraulic release device for the manual lowering of the bollard by a special spanner in an emergency. Impact resistance 30.000 J, breakout resistance 150.000 J, static load max 1.600 kg (bollard in raised position), max 20.000 kg (in lowered position). Working temperature -40 ÷ +80 °C. Supply voltage 230 Vac ± 10%, 50 Hz. Absorbed power 330 W. Rising time ~ 4,7 s [h 500 mm from ground level], ~ 5,6 s [h 600 mm from ground level] ~ 7,5 s [h 800 mm from ground level]. Intensive use, 2.000 cycles/a day.
