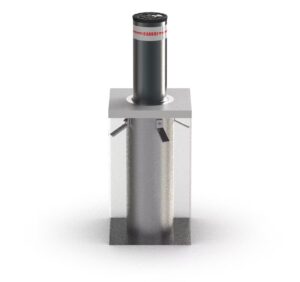

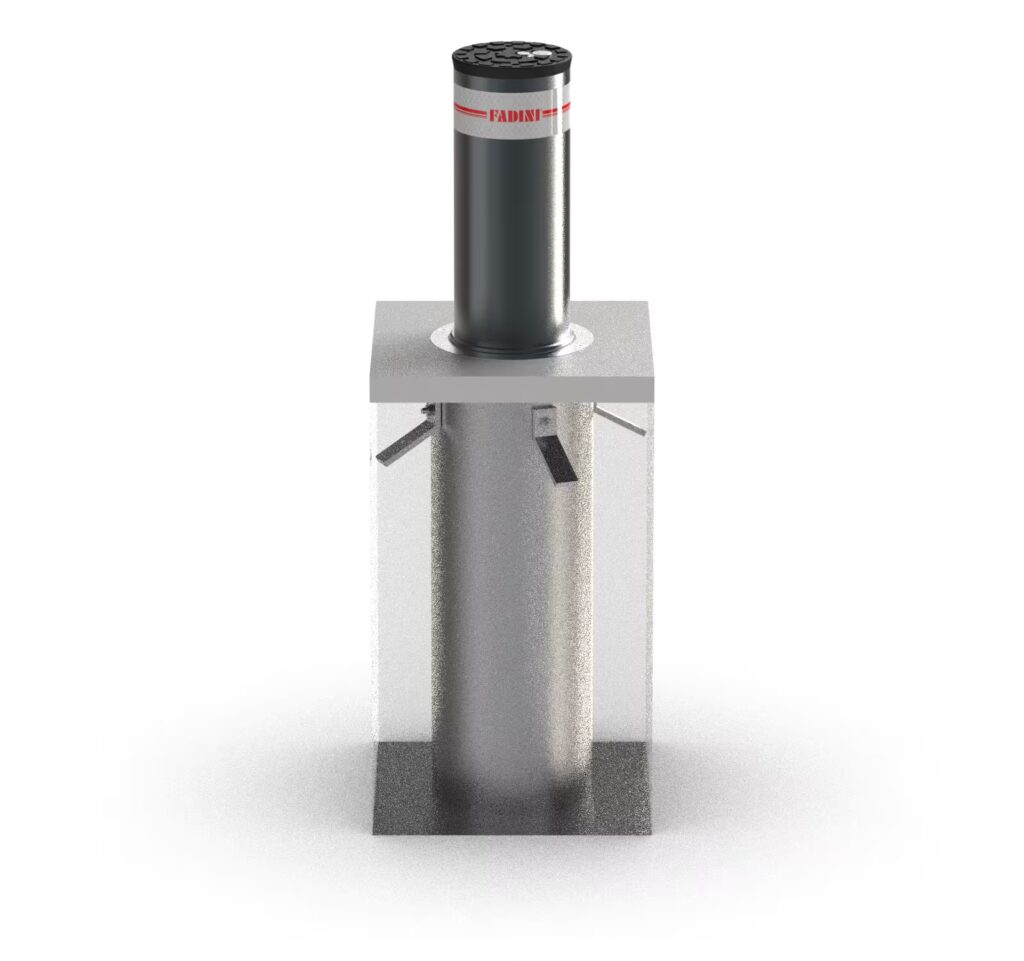

Fadini Gaspo 252 - Semi-Automatic bollard

Description

EASY

No particular adjusting or setting required, quick installation: no power supply or wiring to deal with. Carriageable bollard with slip-proof, tread resistant finish.

SECURE

Mechanical lock to prevent the bollard from disengaging accidentally, both in lowered and standing positions. It is operated by a spanner (triangular profile as an option). The rising movement of the cylinder is assisted by the gas springs, while lowering requires pressing on the head.

ROBUST

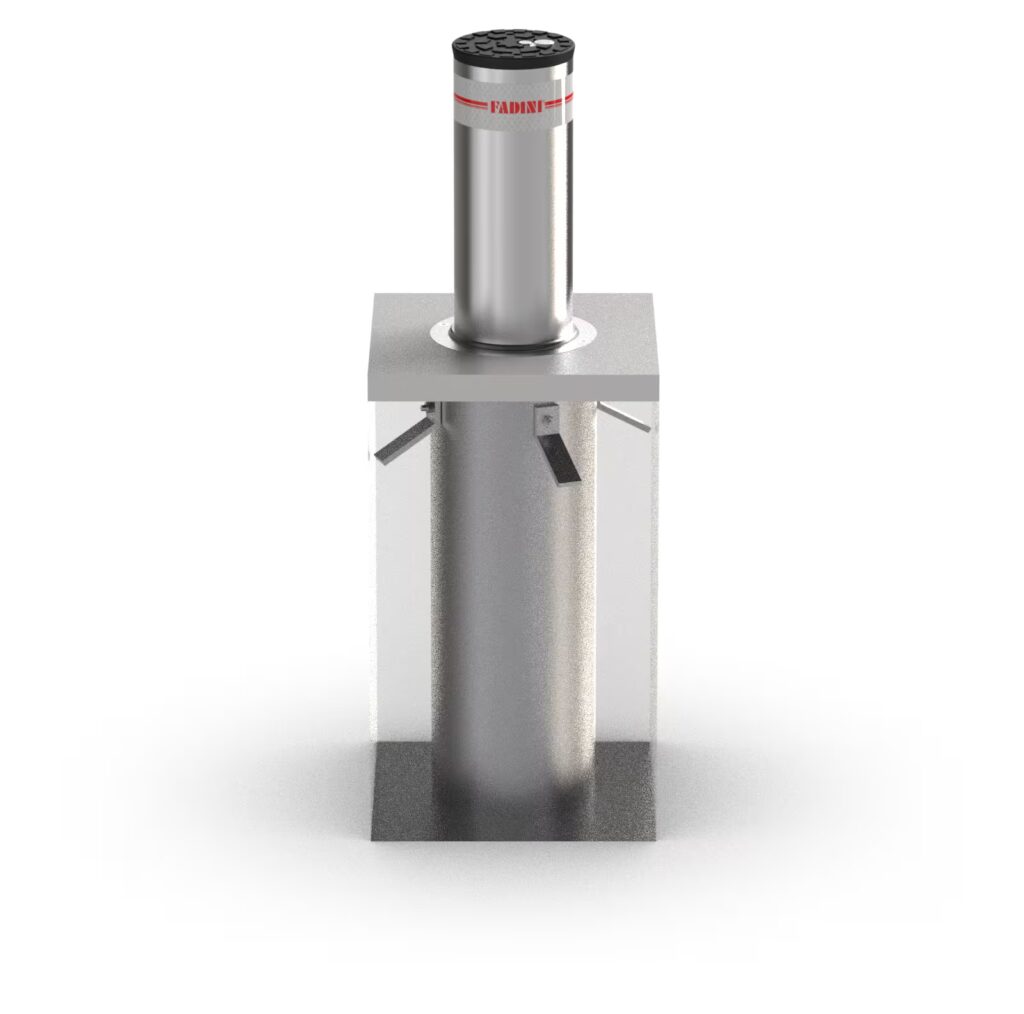

Scratch-proof, cataphoresis treated and polyester powder coated steel cylinder or AISI 304 brushed stainless steel option. The head is fitted with a rubber edge cushioning violent impacts, and the bollard has an approved, retro-reflecting, high intensity, micro-prismatic adhesive film to improve its visibility in dark conditions. Hot dip galvanized steel pit.

Data Sheet

Cylinder diameter (mm)	200
Cylinder thickness (mm)	4
Cylinder height from ground (mm)	500
Cylinder material	S235JRH steel AISI 304 stainless steel
Cylinder treatment and finishing	cataphoresis and polyester powder coating RAL 7016 brushed
Pit	hot dip galvanization
Impact resistance (J)	30.000
Breakout resistance (J)	160.000
Weight (kg)	63

Specifications

Retractable semiautomatic bollard for traffic control in residential, commercial, industrial and urban applications. Height from ground level is 500 mm. Scratch-proof S235JRH steel cylinder, ø 200 and 4 mm thickness, cataphoresis treated and powder coated, or brushed AISI 304 stainless steel option. Cylinder head made of aluminium, slip-proof and tread resistant, with a rubber edge. Cylinder with an approved, retro-reflecting, high intensity, micro-prismatic adhesive film (h 80 mm). The foundation pit is made of steel and hot dip galvanized. Movements are by gas springs. Head allowing access to the release device by a spanner for manual lowering. Breakout resistance 160.000 J.
