Fadini Talos 94 – Semi-Automatic bollard

RETRACTABLE SEMIAUTOMATIC BOLLARD

System operated by gas springs, quick and easy to install: no electric supply and cabling required.

Free Delivery to UK Mainland

Description

MATCHING DESIGN

It has the same design as TALOS automatic bollards 94 and 96 series, to which it can be combined in perimeter applications or driveways to stop vehicles from transiting in both public and private areas. No particular setting or adjusting required, quick and easy to install: no electric supply and cabling required.

RELIABLE

Mechanical locking device to prevent the cylinder from accidentally disengaging either in standing or lowered positions. Operations are by a release spanner (triangular profile on request). Movements are by gas operated springs: assisted rising of the cylinder, while lowering needs pressing on the bollard head.

ROBUST

Scratch-proof, cataphoresis treated and polyester powder coated steel cylinder. An AISI 304 brushed 12/10 thick stainless steel cover sleeve can be factory fitted on to it, on request. Cylinder head fitted with a rubber edge cushioning violent impacts. The bollard has an approved, retro-reflecting, high intensity, micro-prismatic adhesive film to improve its visibility in dark conditions. Ground pit made of steel and hot dip galvanized, slip-proof tread resistant cover plate.

VERSATILE

It is possible to decide at a later stage to replace the semiautomatic model with the equivalent TALOS automatic; the ground pit is in fact the same.

Data Sheet

Cylinder diameter (mm) 275
Cylinder thickness (mm) 4
Cylinder height from ground (mm) 500/600/700/800
Cylinder material S235JRH steel
Cylinder treatment and finishing cataphoresis and polyester powder coating RAL 1028 AISI 304 brushed SS steel sleeve
Pit hot dip galvanization
Impact resistance (J) 52.000
Breakout resistance (J) 320.000
Maximum static load (kg) 20.000

Overall Dimensions

HEIGHT h
500 830
600 1.010
700 1.010
800 1.210

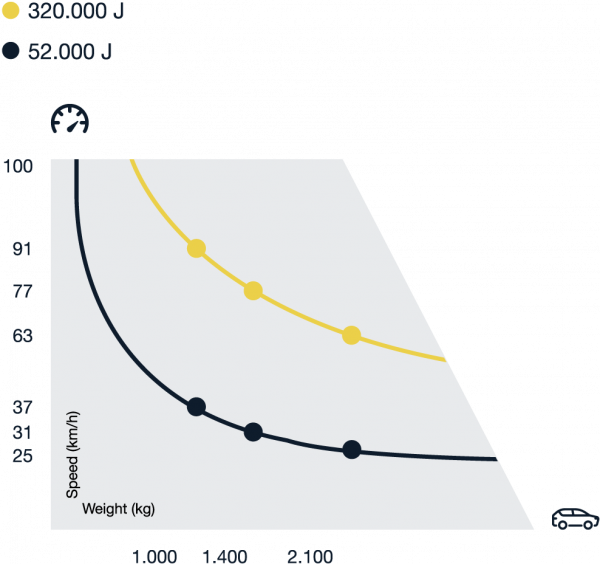

Resistance

Specifications

Retractable semiautomatic bollard suitable for residential, commercial, industrial installations and urban applications. Height from ground level can be 500/600/700/800 mm. Scratch-proof S235JRH steel cylinder, ø 275 mm and 4 mm thickness, cataphoresis treated and polyester powder coated (an AISI 304 brushed stainless steel cover sleeve available). Aluminium cylinder head with rubber edge (available also with integrated led lights). Cataphoresis treated aluminium cover plate. Head and cover plate are slip-proof and tread resistant. Approved, retro-reflecting, high intensity, micro-prismatic adhesive film (h 80 mm) fitted on to the cylinder. Hot dip galvanized steel pit. Movements of the cylinder by gas springs. Head allowing access to the release device by a spanner for manual lowering. Breakout resistance 320.000 J.

Downloads

Manual
