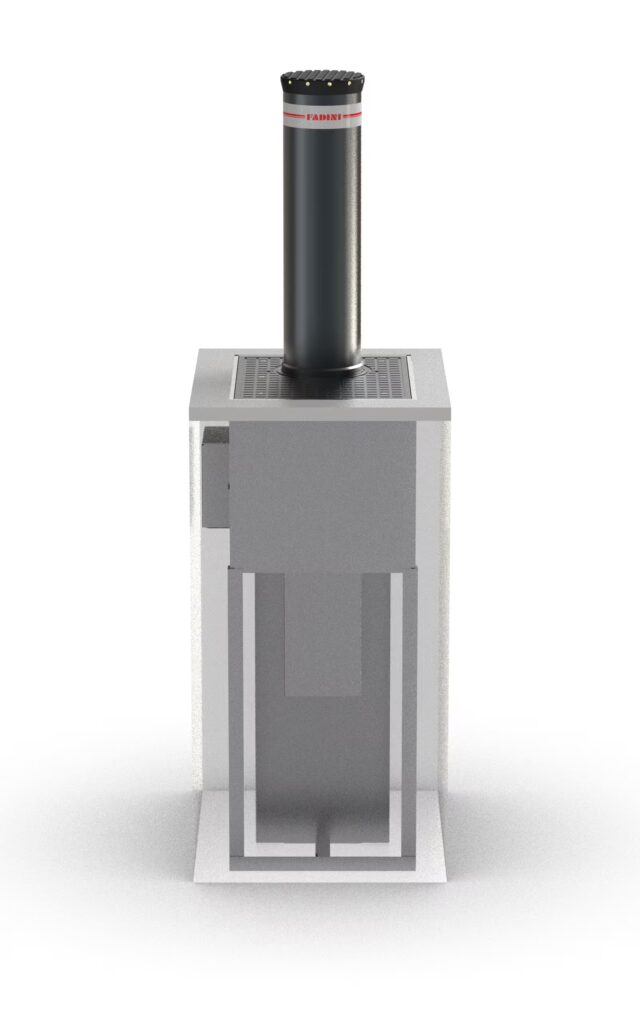

Fadini Talos M50

Description

PERIMETER SECURITY

Intended for traffic control and protection of those sensitive areas (embassies, military bases, government palaces, banks, etc.), where a high level of perimeter security is needed against terrorist attacks. Designed and tested to safely withstand, in a single bollard configuration, a vehicle of 7,5 t at a speed of 80 km/h and stay intact and fully operative. EFO (Emergency Fast Operation) version also available for quick rising in an emergency.

OIL-HYDRAULIC

Hydraulic locking device in standing position (standard) and emergency manual lowering by a release spanner supplied with the equipment. Drive unit with two lobe pumps. Burglar-proof cover plate preventing the release system from being accessed and thus the bollard from being lowered.

STRONG

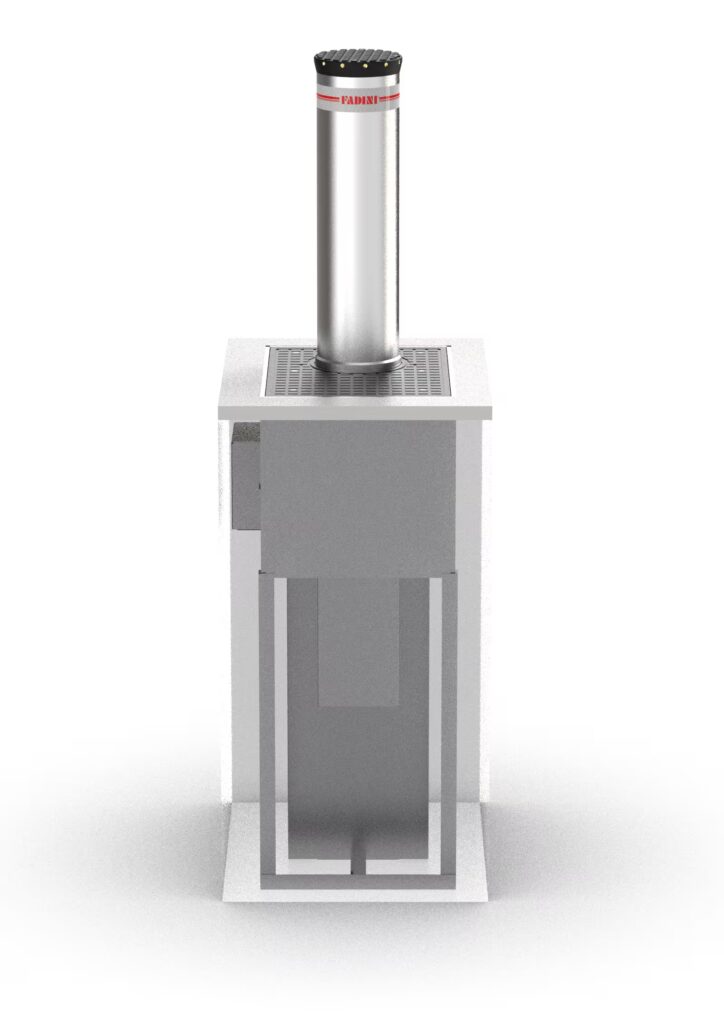

Scratch-proof cataphoresis treated and polyester powder coated steel rising cylinder. Available also with an AISI 304 stainless steel cover sleeve, thickness 12/10. Breakout resistance: 2.000.000 J.
Connector and junction box IP 66 for cabling. Hall effect limit switch sensors, cylinder head with rubber edge and incorporated LED lights.

VERSATILE

A vast range of command and safety accessories allow for reliable and precise control of the installations. Beeper to signal the movements. Heating device for installations in very low temperature conditions -40 °C, where snow and ice are frequent. The electronic control unit can be set so that it can manage several bollards at a time.

CERTIFICATES

Classes of performance: K12 / M50 / C750

Certified:

ASTM F2656-15 C750

PAS 68:2013 V/7500 (N3)/80

IWA 14-1:2013 V/7200 [N3C]/80

Data Sheet

Cylinder diameter (mm)	275
Cylinder thickness (mm)	20
Cylinder height from ground (mm)	1.000
Cylinder material	S355K2H steel
Cylinder treatment and finishing	cataphoresis and polyester powder coating RAL 7016 AISI 304 brushed SS steel sleeve
Pit	hot dip galvanization
Rising time (s) [cm/s]	~5,00 [20]
Lowering time (s) [cm/s]	~3,20 [31]
Working temperature (°C)	-20 ÷ +80 (-40 with heater)
Oil type	708L
Power supply (Vac – Hz)	230 – 50
Absorbed power (W)	3.100 (1.550 + 1.550)
Absorbed current (A)	10 ÷ 13
Grade of protection IP / motor-pump	67
Frequency of use (cycles/day)	heavy duty / 2.000
Impact resistance (J)	700.000
Breakout resistance (J)	2.000.000
Maximum static load (kg)	20.000

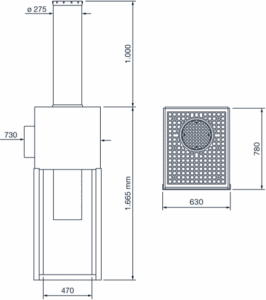

Overall Dimensions

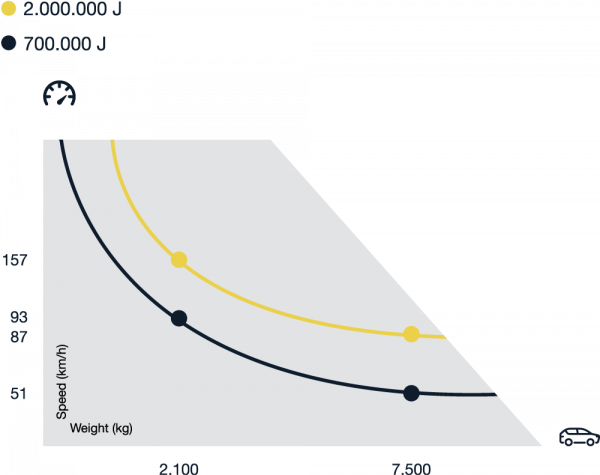

Resistance

Specifications

Fully retractable, heavy duty, automatic bollard consisting of an oil-hydraulic drive unit incorporated inside the main structure and an oil-hydraulic actuator inside the moving cylinder. Suitable for the protection of sensitive areas where a high level of perimeter security is needed. Certified and tested as per ASTM F2656-15 C750, PAS 68:2013 V/7500 (N3)/80 and IWA 14-1:2013 V/7200 [N3C]/80 norms. Designed to stop, in a single bollard configuration, a vehicle of 7,5 t at a speed of 80 km/h. IP 67. Height from ground level 1.000 mm. Scratch-proof S355K2H steel rising cylinder, thickness 20 mm and ø 275 mm, cataphoresis treated and polyester powder coated (an AISI 304 brushed stainless cover sleeve also available). Cylinder head made of aluminium fitted with rubber edge and 12 amber-colour integrated LED lights, burglar-proof cataphoresis treated aluminium cover plate. Head and cover plate are slip-proof and tread resistant. Moving cylinder fitted with an approved retro-reflecting, high intensity micro-prismatic adhesive film (h 80 mm). Hot-dip galvanized steel pit. EFO (Emergency Fast Operation) version available for quick rising in an emergency. Impact resistance 700.000 J, breakout resistance 2.000.000 J, static load max 2.800 kg (cylinder in raised position), max 20.000 kg (lowered). Working temperature -40 ÷ +80 °C. Supply voltage 230 Vac ± 10%, 50 Hz. Absorbed power 3.100 W. Rising time ~ 5 s. Intensive use 2.000 cycles/a day.
