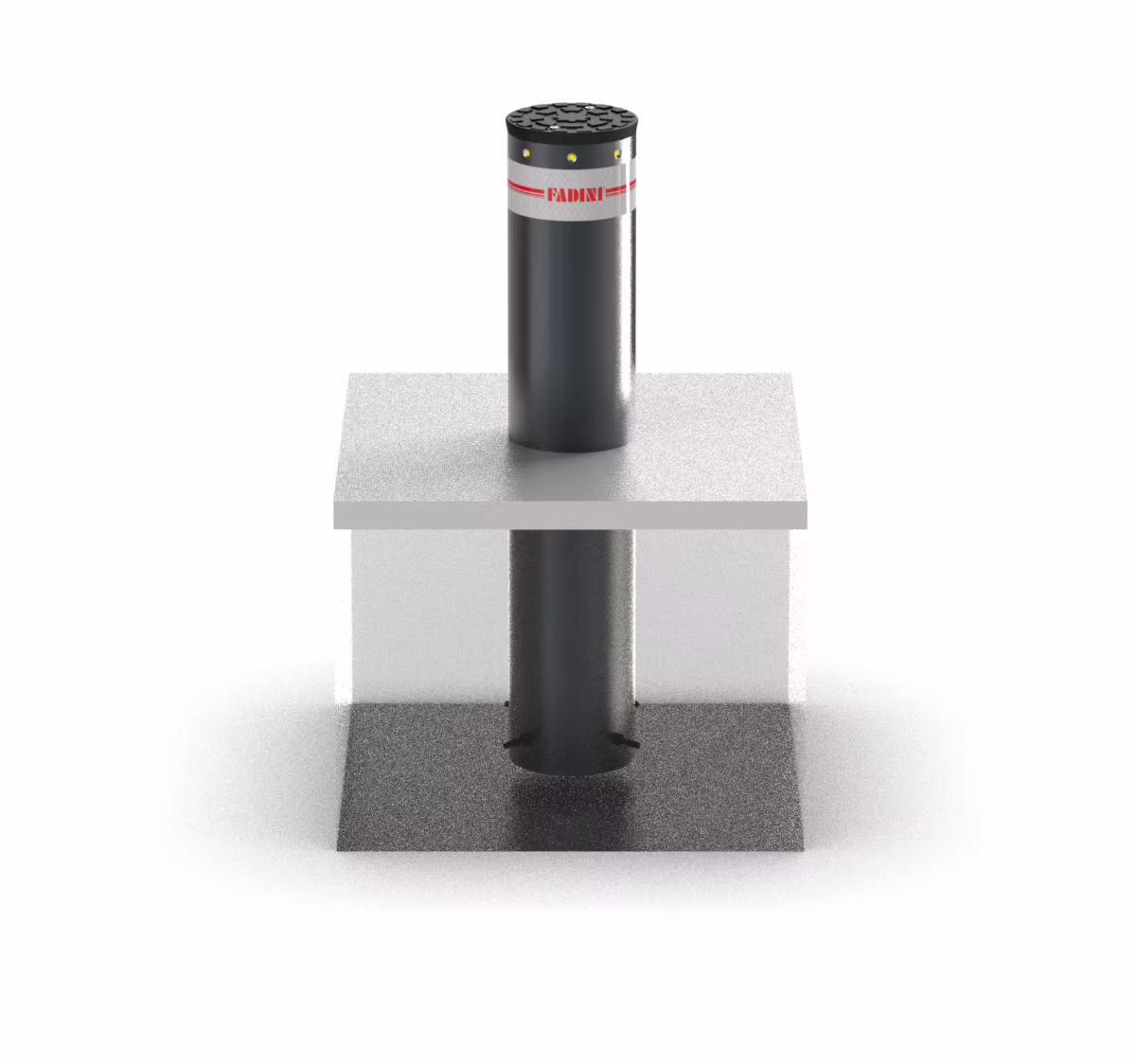

Fadini Vigilo – Fixed bollard

Fixed bollards ideal for perimeter installations in public or private areas, as well as for traffic control.

Free Delivery to UK Mainland

Description

FEATURES

The VIGILO fixed range of bollards have been designed and constructed to match VIGILO automatic bollards, allowing in this way the combined installation of both versions. The fixed bollards can be sunk straight into a concrete foundation in the ground at various heights (impact resistance depends on anchoring depth),  8 amber colour signalling LED lights are available on request and radially fitted on to the bollards. Ideal for perimeter installations in public or private areas, as well as for traffic control.

Data Sheet

Cylinder diameter (mm) 200
Cylinder thickness (mm) 4
Cylinder length (mm) 1.000
Cylinder height from ground (mm) 500/600/800
Cylinder material S235JRH steelAISI 304 stainless steel
Cylinder treatment and finishing cataphoresis and polyester powder coating RAL 7016brushed
Impact resistance (J) 30.000
Breakout resistance (J) 150.000
Weight (kg) 21

Specifications

Fixed bollard for traffic control. The recommended height from ground level to match the automatic ones, can be 500, 600 or 800 mm. S235JRH steel cylinder, 4 mm thickness and ø 200 mm, cataphoresis treated and polyester powder coated or AISI 304 brushed stainless steel. Cylinder head made of aluminium with rubber edge. Cylinder with an approved, retro-reflecting, high intensity, micro-prismatic adhesive film (h 80 mm), designed to take 8 amber colour signalling LED lights, radially fitted. Breakout resistance 150.000 J. Suitable for installations in private, commercial areas and city centres.
