XPASS B 275/800 SS Anti-Terrorism

Description

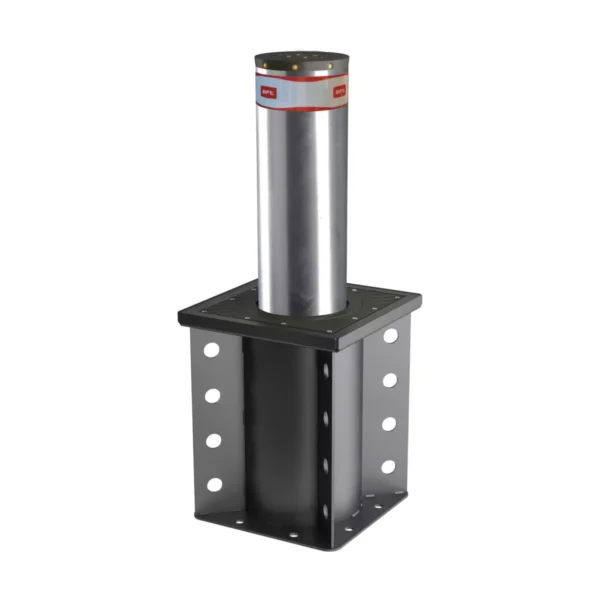

The XPASS B 275/800 Stainless Steel is an automatic hydraulic anti-terrorism bollard, tested and certified (crash-tested) by independent body in accordance with standards IWA14-1:2013 and PAS 68 suitable for protecting sensitive sites.

Made with strong AISI304 or AISI316 stainless steel, this model built is to withstand an excessive amount of force.

Built-in hydraulic unit, accessible and independent for each bollard. If one control unit breaks, the other bollards will guarantee it continues to function, whilst maintenance work is simplified. These bollards have been designed and built with the aim of simplifying maintenance with the hydraulic pump located under the flange.

The XPASS B comes with a Failsafe or Fail Secure option: Failsecure version ensuring the shaft raises in the event of a power failure. The Failsafe version is suitable for where the shaft must lower freeing the passage in the event of a power failure.

With a powerful hydraulic operator, this model is capable of a rise time of 7 seconds or less. The XPASS B is capable of enduring varying weather conditions as a result of its operating ambient temperature of -40°C – 60°C (with heater).

Comes with PERSEO CBE dedicated control panel: managed up to 4 bollards in parallel, programming menu on the display, integrated heating element and incorporated receiver.
Bollard comes with two key fob transmitters to operate the bollard
Operated by key fob, from your smartphone or via an intercom

Key Data

Buried Structure: ~22.05 x ~22.05 x h. ~44.88in
Foundation: Reinforced Concrete
Excavation: ~39.37 x ~39.37 x ~55.12in.
Break-In Resistance: 667,000 J
Driven Rod Treatment: AISI304 or AISI316 stainless steel
Passive Visibility: Reflective film ~3.94 in. (optional)
Flange: Cast-Iron, cataphoresis black
Top Cover: Cast-Iron, cataphoresis black
Acutator: Hydraulic
Power: 230 Vac +/- 10%, 50-60 Hz
Working Time: Rise Time: ≤ 7.0 s (50 Hz); Lowering time: 4.0 s (50 Hz)
Working Temp: -40°F – 140°F (with heater)
Operating Humidity: Up to 100%
IP Grade: IP67
Crash Rated: M30, K4
Hand operation: Interrupting the power off:
- Standard Version: Bollard will open.
- Security Version: Bollard will stay up.
- Lower by means of a solenoid value which is accessible from the ground flange.

Electrical Features:

Control Unit: PERSEO CBD or PERSEO CBE
Power: 1-Phase 230 Vac +/- 10%, 50-60 Hz (115 Vac with optional adapter)
IP Grade: IP54
Working Temperature: -40°F – 140°F
Operating Humidity: up to 95%, non-condensing
Use: Max. 4 for each control unit. Parallel control wiring possible for driving many groups of bollards.
Power Absorbed: 0.55 kW for each bollard
Signalling(optional): On the top with high intensity LEDs, and buzzer
Sensors: Open passage, Close passage (PERSEO CBE), Overpressure/Obstacle, Antitampering switch (optional)
Local/Remote Control: Control Options
- Digital inputs
- Radio remote control
- RS485, TCP/IP (option, PERSEO CBE only)

Installation Service

This product is available as ‘supply only’ or ‘supply and installed’. We have a network of approved installers providing nationwide installation across the UK.

If you require installation, please enter your postcode to check the installation rate which can be added to your order.

After our customer service team picks up your order, we will contact you via email or phone to coordinate the installation at a date and time convenient for you. Typically, installation is completed within 5-7 working days from the date of your order. To streamline the process, the bollard will be delivered directly to your site, allowing them to both arrive and fit as soon as possible.

Our installation service includes a Cable Avoidance Tool (CAT) scan to find buried services, such as mains power cables or metal water pipes which may clash with the intended bollard locations, as well as the complete removal of all rubble ensuring your site is left clean and tidy.

Read our Installation Terms & Conditions
