XPASS B 275/800 Anti-Terrorism

£7,950.00 INC VAT
(£6,625.00 EXC VAT)

Please enter your postcode to get installation information

All our prices include VAT & Delivery to UK Mainland

Buy more save more

Minimum Qty

Discount

5+

5%

10+

10%

20+

15%

Description

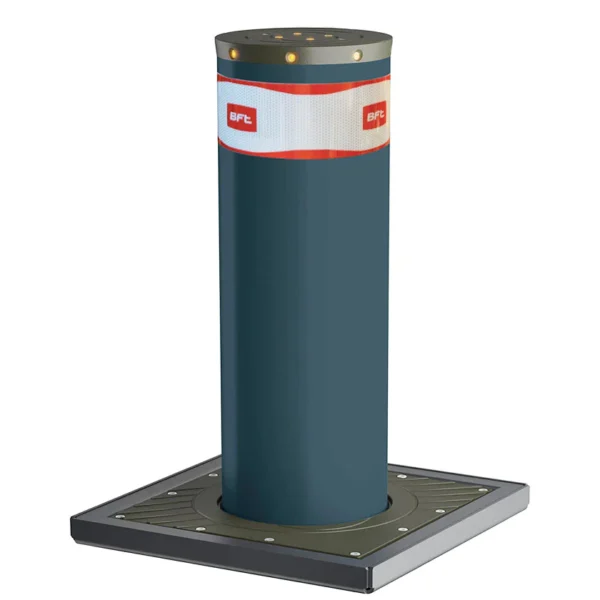

The XPASS B 275/800 is an automatic hydraulic anti-terrorism bollard, tested and certified (crash-tested) by independent body in accordance with standards IWA14-1:2013 and PAS 68 suitable for protecting sensitive sites.

Made with strong RAL 7015 painted steel, this model built is to withstand an excessive amount of force.

Built-in hydraulic unit, accessible and independent for each bollard. If one control unit breaks, the other bollards will guarantee it continues to function, whilst maintenance work is simplified. These bollards have been designed and built with the aim of simplifying maintenance with the hydraulic pump located under the flange.

The XPASS B comes with a Failsafe or Fail Secure option: Failsecure version ensuring the shaft raises in the event of a power failure. The Failsafe version is suitable for where the shaft must lower freeing the passage in the event of a power failure.

With a powerful hydraulic operator, this model is capable of a rise time of 7 seconds or less. The XPASS B is capable of enduring varying weather conditions as a result of its operating ambient temperature of -40°C – 60°C (with heater).

  • Comes with PERSEO CBE dedicated control panel: managed up to 4 bollards in parallel, programming menu on the display, integrated heating element and incorporated receiver.
  • Bollard comes with two key fob transmitters to operate the bollard
  • Operated by key fob, from your smartphone or via an intercom

Key Data

  • Buried Structure: ~22.05 x ~22.05 x h. ~44.88in
  • Foundation: Reinforced Concrete
  • Excavation: ~39.37 x ~39.37 x ~55.12in.
  • Break-In Resistance: 667,000 J
  • Driven Rod Treatment: AISI304 or AISI316 stainless steel
  • Passive Visibility: Reflective film ~3.94 in. (optional)
  • Flange: Cast-Iron, cataphoresis black
  • Top Cover: Cast-Iron, cataphoresis black
  • Acutator: Hydraulic
  • Power: 230 Vac +/- 10%, 50-60 Hz
  • Working Time: Rise Time: ≤ 7.0 s (50 Hz); Lowering time: 4.0 s (50 Hz)
  • Working Temp: -40°F – 140°F (with heater)
  • Operating Humidity: Up to 100%
  • IP Grade: IP67
  • Crash Rated: M30, K4
  • Hand operation: Interrupting the power off:
    • Standard Version: Bollard will open.
    • Security Version: Bollard will stay up.
    • Lower by means of a solenoid value which is accessible from the ground flange.



Electrical Features:

  • Control Unit: PERSEO CBD or PERSEO CBE
  • Power: 1-Phase 230 Vac +/- 10%, 50-60 Hz (115 Vac with optional adapter)
  • IP Grade: IP54
  • Working Temperature: -40°F – 140°F
  • Operating Humidity: up to 95%, non-condensing
  • Use: Max. 4 for each control unit. Parallel control wiring possible for driving many groups of bollards.
  • Power Absorbed: 0.55 kW for each bollard
  • Signalling(optional): On the top with high intensity LEDs, and buzzer
  • Sensors: Open passage, Close passage (PERSEO CBE), Overpressure/Obstacle, Antitampering switch (optional)
  • Local/Remote Control: Control Options
    • Digital inputs
    • Radio remote control
    • RS485, TCP/IP (option, PERSEO CBE only)
